Beltpack with battery
Description
The purpose of the battery is to supply clean and stable power to the OBC. The battery consists of 4 Li-Ion cells in series. The battery contains battery management system (BMS) functions to protect the cells form overcharge, overdischarge and short circuits.
Installation at event
- Install beltpack so that the battery can be easily removed. (no tape)
- Install beltpack so that the battery is inserted sideways or up.
- Connect the power cable to the Back Bone (BB).
- Apply a zip tie as strain relief for the power cable near the back bone.
Characteristics
| Weight belt pack | 197g |
|---|---|
| Weight battery | 241g |
| Nominal battery Voltage | 14,4 VDC |
| Maximum battery Voltage | 16,8 VDC |
| Maximum current | 10A |
| Energy fully charged | ≤ 49Wh |

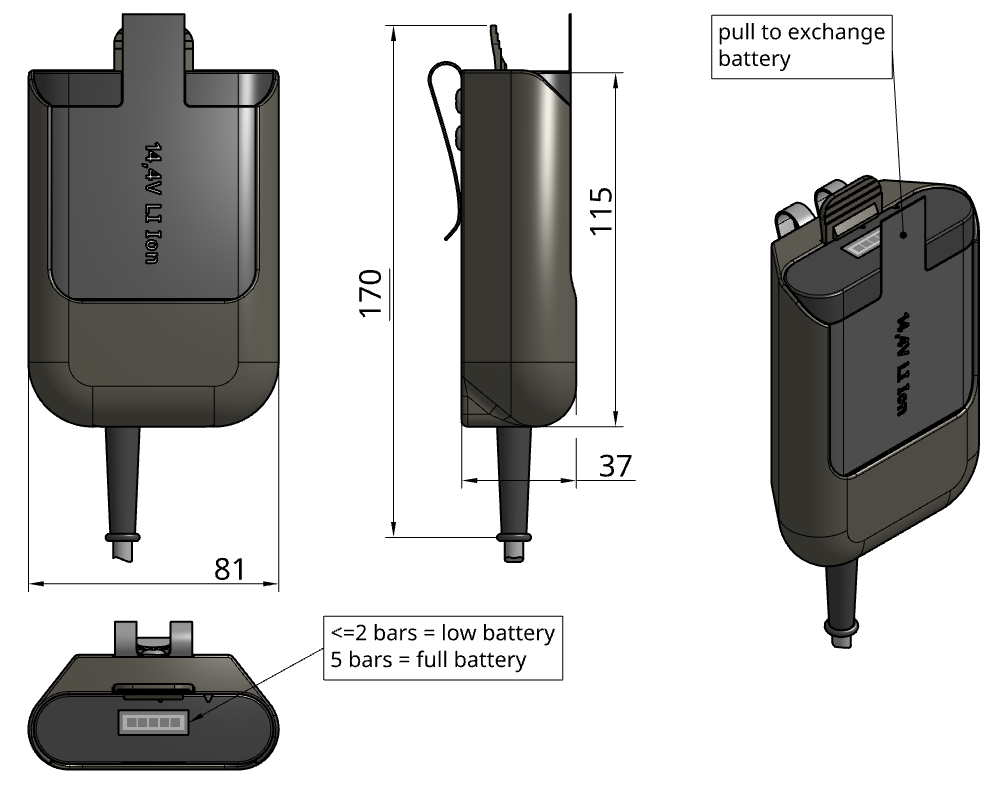

Drawings and Dimensions
